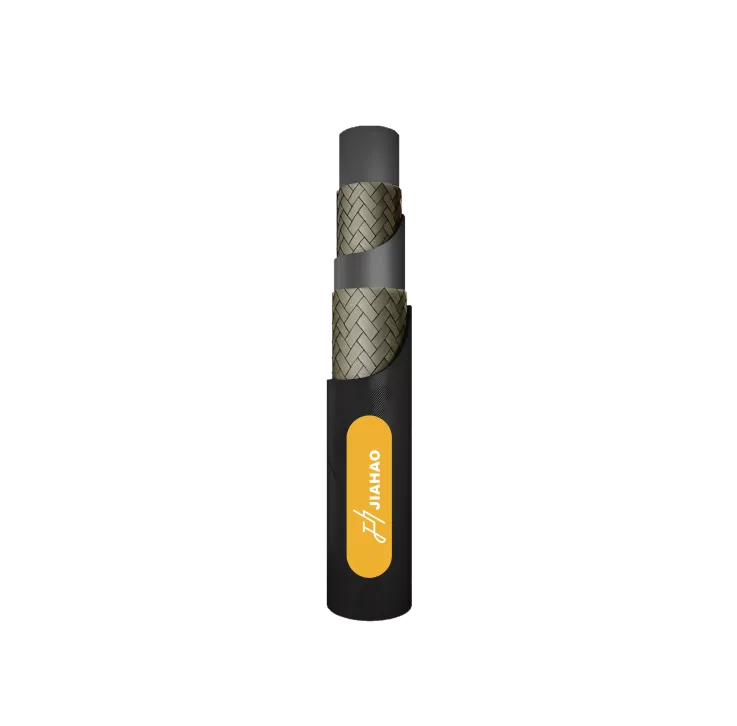

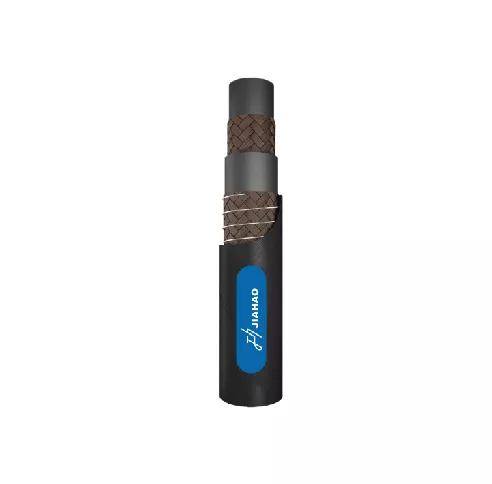

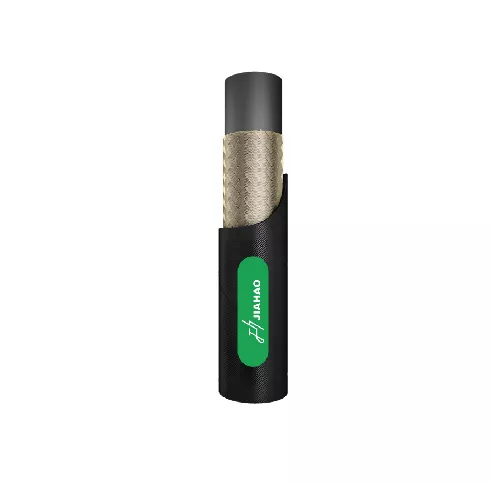

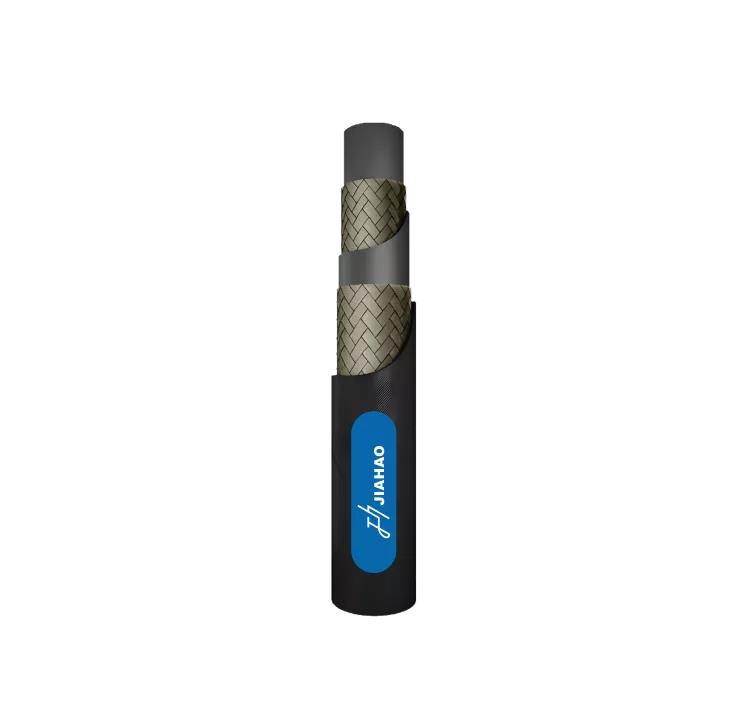

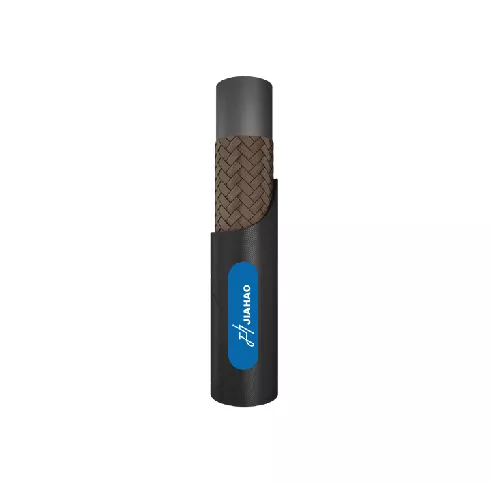

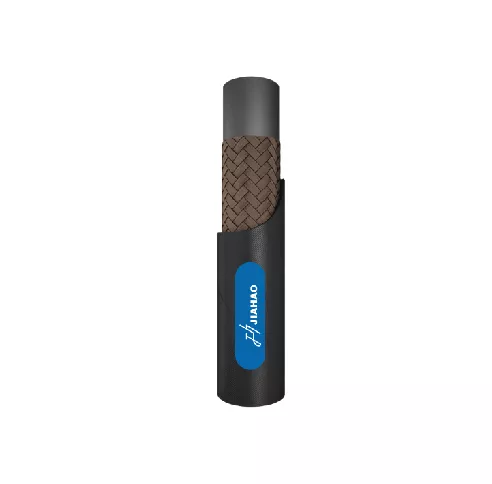

产品结构
Product Structure

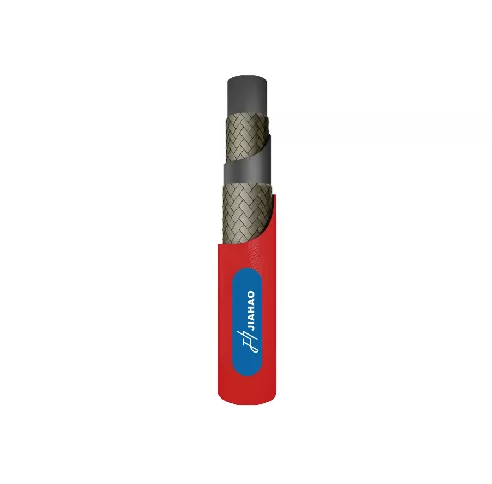

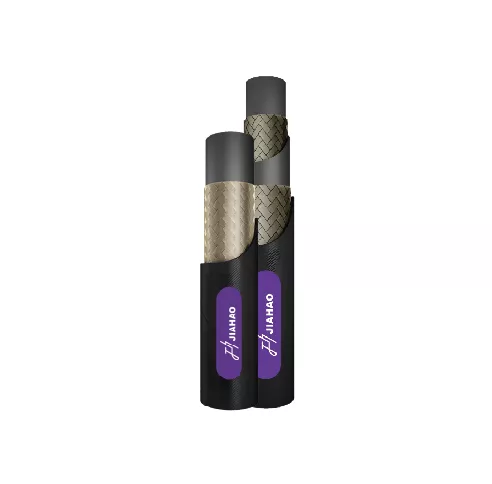

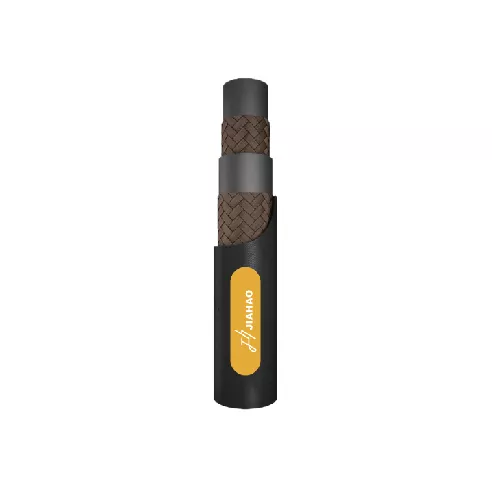

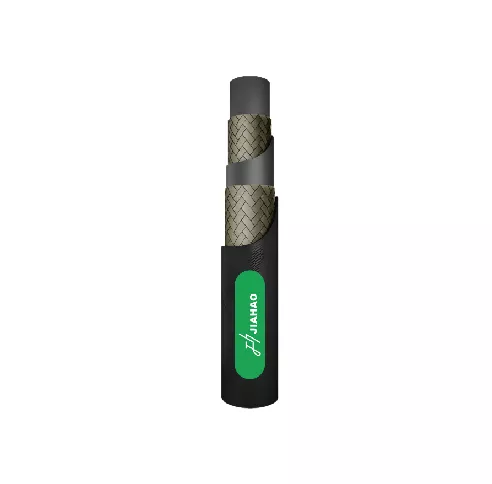

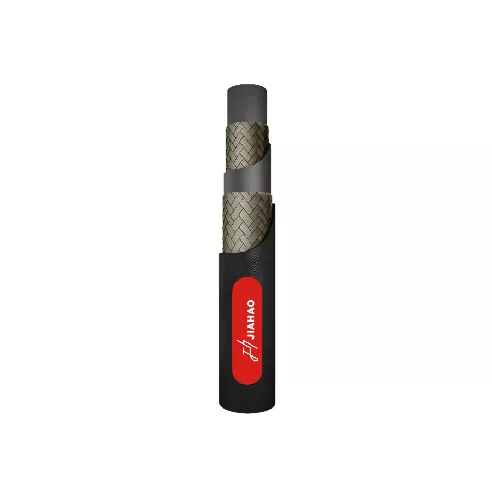

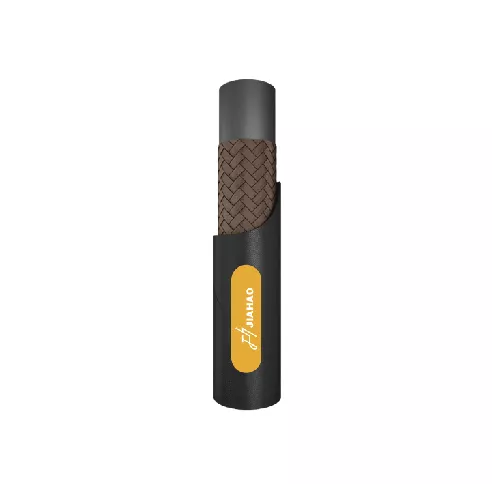

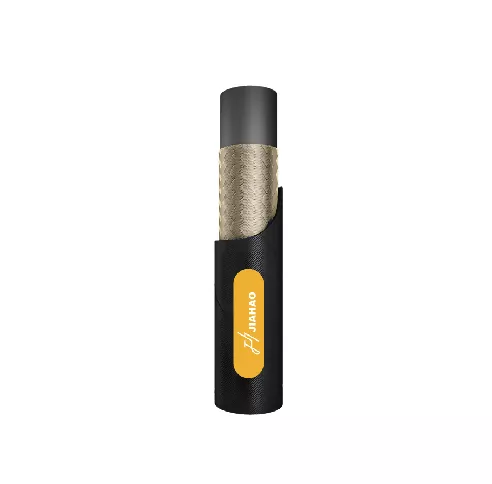

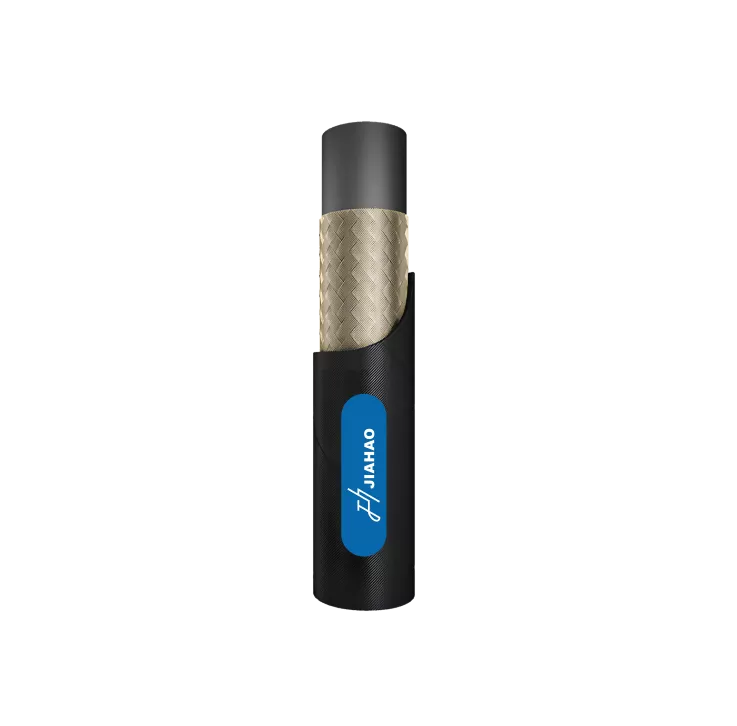

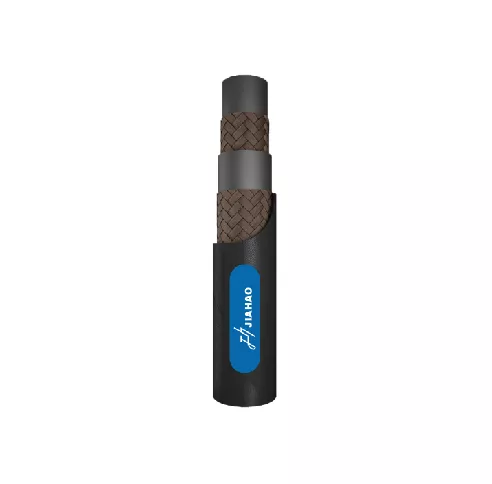

钢丝编织胶管结构是由耐液体的合成橡胶内胶层、中胶层、Ⅰ或Ⅱ层钢丝编织增强层及耐天候性能优良的合成橡胶层组成。
Braided hose consists of an inner tube of liquid resistant synthetic rubber, middle rubber layer, one or two braid wire reinforcement and superior weather resistant synthetic rubber cover.

产品用途
Application
钢丝增强液压橡胶软管主要用于矿井液压支架、油田开采，适宜于工程建筑、起重运输、冶金锻压、矿山设备、船舶、注塑机械、农业机械、各种机床以及各工业部门机械化、自动化液压系统中输送具有一定压力和温度的石油基(如矿物油、可溶性油、液压油、燃油、润滑油)液体、水基液体(如乳化液、油水乳浊液、水)、气体等和液体传动用。
Steel wire reinforcement hydraulic hose mainly used in mine hydraulic support, oil exploration, suitable for engineer constrcution , crane transport, forging metalurgy, mining equipment, ships, injection molding machinery, agricultural machinery various machine tools and carry hydraulic fluids for industry department mechanization andautomatichydraulic systems, including petroleum base fluids which under specific pressure and temperature (e.g.mineraloil, soluble ol, hydraulic oil, fuels, lubrication), water based fluids (e.g. emulsion, oil-water emulsion, water), air and fluids.

工作温度
Working Temperature
油类-55℃至 +150℃ 空气-30℃至 +50℃ 水乳液 +80℃以下
Oil: -55℃ to +150℃ Air: -30℃ to +50℃ Water Emulsion: Below +80℃

产品特点 Product Features
1.胶管选用特种合成橡胶配合制成，具有优良的耐油、耐热、耐老化性能； 2.胶管承压力高，脉冲性能优越； 3.管体结合紧密，使用柔软，在压力下变形小； 4.胶管具有优良的耐曲挠性和耐疲劳性； 5.使用寿命长。
1. Provides superior oil resistance, heat resistance and aging resistance by using special synthetic rubber; 2. Provides high pressure resistance and superior impulse resistance; 3. Provides superior bonding in hose internal, soft use and small deformation under pressure; 4. Provides superior kink resistance and fatigue resistance; 5. Provides longer service life.

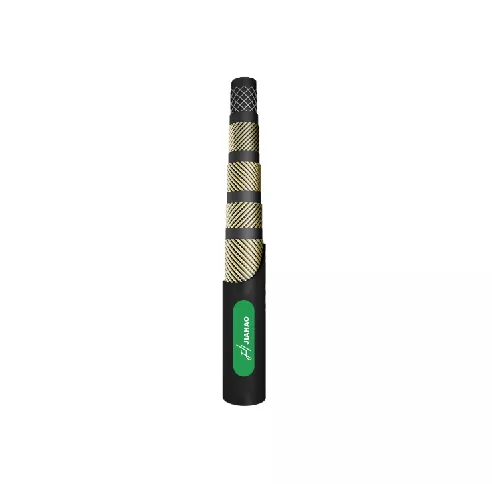

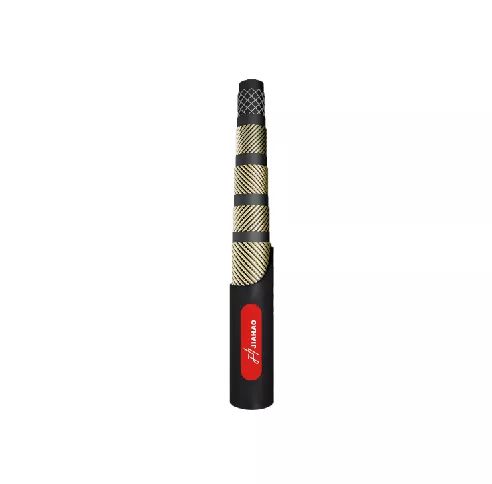

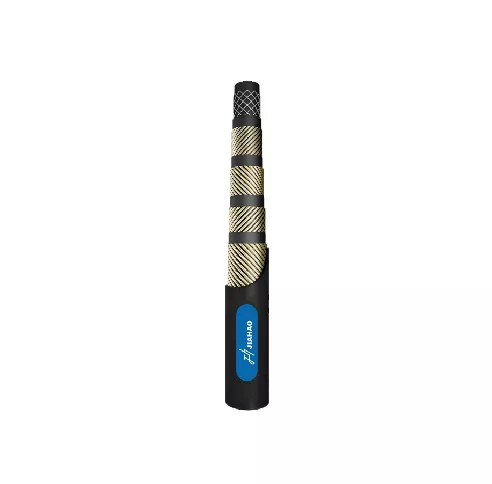

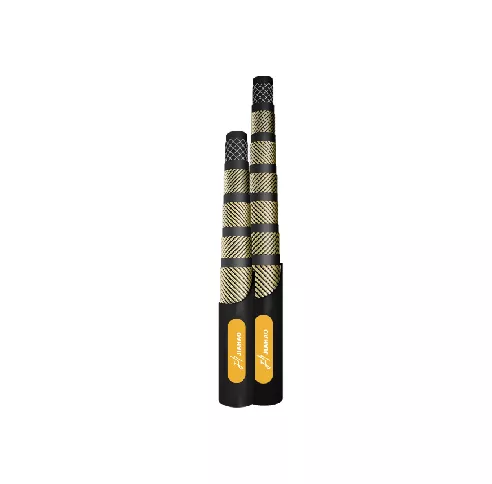

产品结构
Product Structure

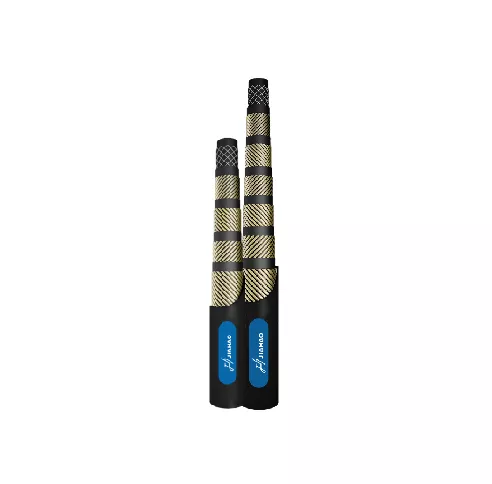

主要由内胶层、中胶层、4、6层钢丝缠绕层、外胶层组成。内胶层具有使输送介质承受压力，保护钢丝不受侵蚀的作用，外胶层保护钢丝不受损伤，钢丝层(中0.3-2.0增强层)是骨架材料起增强作用。
Spiral hose consists of one inner tube,one middle rubber layer,four or six steel wire spiral reinforcement layers and a cover.The inner tube transmits liquid under pressure and protects steel wire against corrosion and the cover protects wire against damage.The wire layer (0.3-2.0 reinforcement)provides reinforcement.

产品用途
Application
钢丝增强液压胶管主要用于矿井液压支架、油田开发，适宜于工程建筑、起重运输、冶金锻压、矿山设备、船舶、注塑机械、农业机械、各种机床以及各工业部门机械化、自动化液压系统中输送具有一定压力和温度的石油基(如矿物油、可溶性油、液压油、燃油、润滑油)液体水基液体(如乳化液、油水乳浊液、水)气体等和液体传动用，最高耐工作压力可达70-120Mpa。
Steel wire reinforcement hydraulic hose mainly used in mine hydraulic support, oil exploration, suitable for engineer constrcution , crane transport, forging metalurgy, mining equipment, ships, injection molding machinery, agricultural machinery various machine tools and carry hydraulic fluids for industry department mechanization and automatichy draulic systems, including petroleum base fluids which under specific pressure and temperature (e.g.mineraloil, soluble ol, hydraulic oil, fuels, lubrication), water basedfluids (e.g. emulsion, oil-water emulsion, water) and air and fluids.High working pressure 70-120 Mpa.

工作温度
Working Temperature
-40℃至121℃
-40 ℃ to 121 ℃

规格范围
Specification Range
6.3mm至75mm
6.3mm to 75mm

种类
Categories
4SP 型—四层钢丝缠绕的中压胶管 4SH 型一四层钢丝缠绕的高压胶管 R12 型—四层钢丝缠绕苛刻条件下的高温中压胶管 R13 型一多层钢丝缠绕苛刻条件下的高温高压胶管 R15 型—多层钢丝缠绕苛刻条件下的高温超高压胶管
4SP: medium pressure rubber hose with four layers of spiral steel wire 4SH:high-pressure rubber hose with four layers of spiral steel wire R12:High temperature and medium pressure rubber hose with four layers of spiral steel wire under harsh conditions R13:high-temperature and high-pressure rubber hose with multi-layer spiral steel wire under harsh conditions R15:High temperature and ultra-high pressure rubber hose with multi-layer spiral steel wire under harsh conditions.

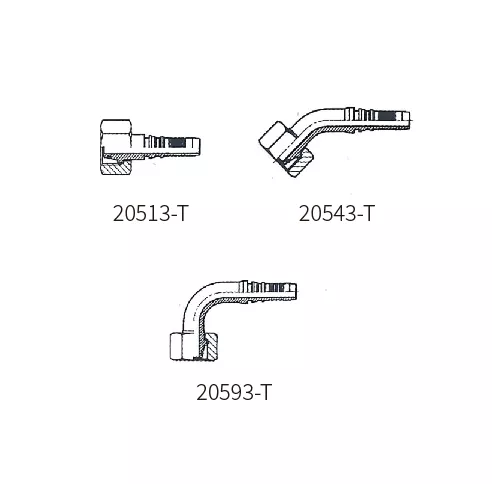

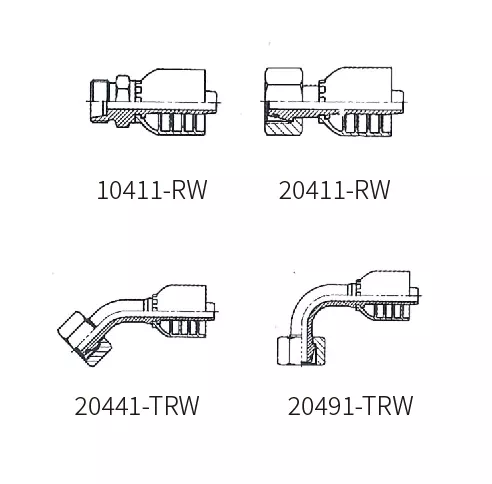

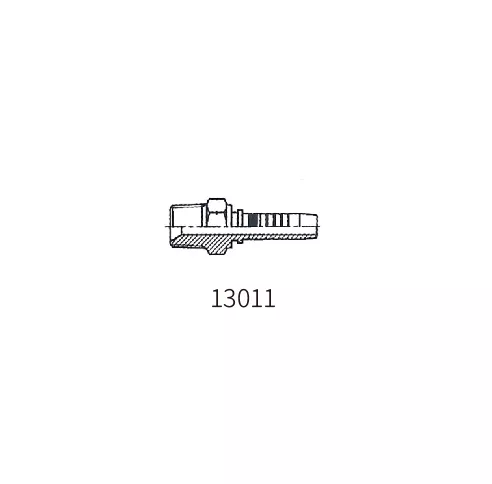

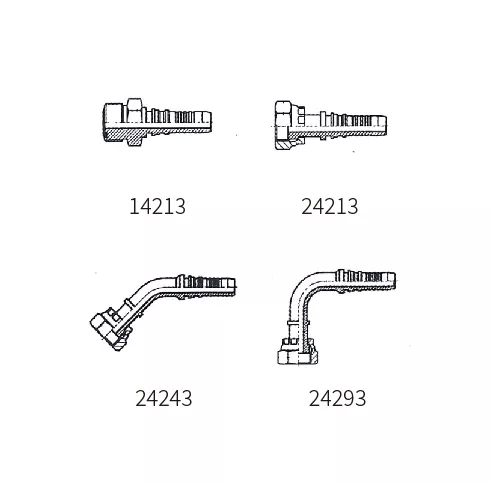

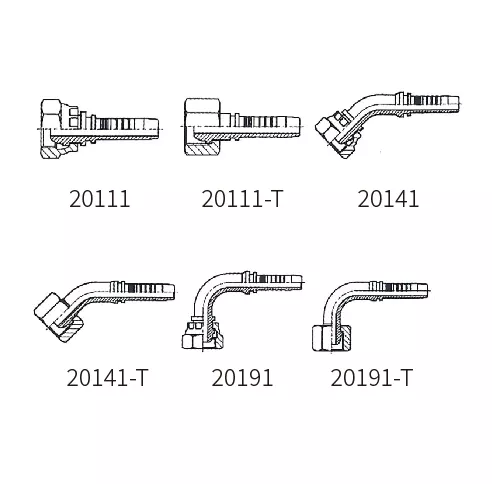

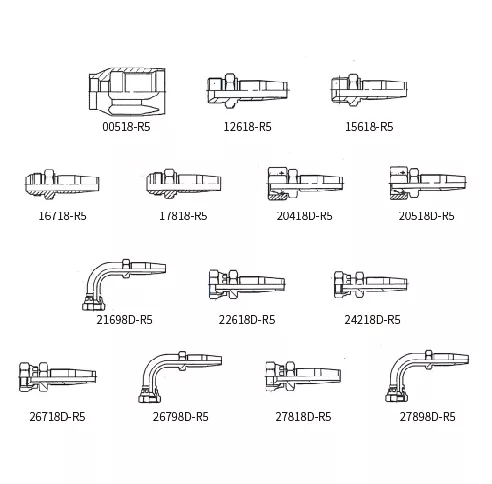

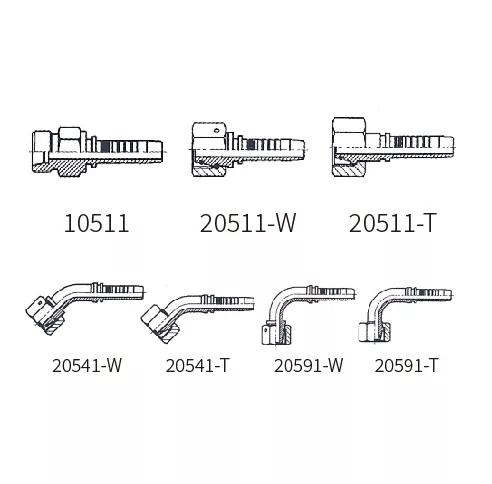

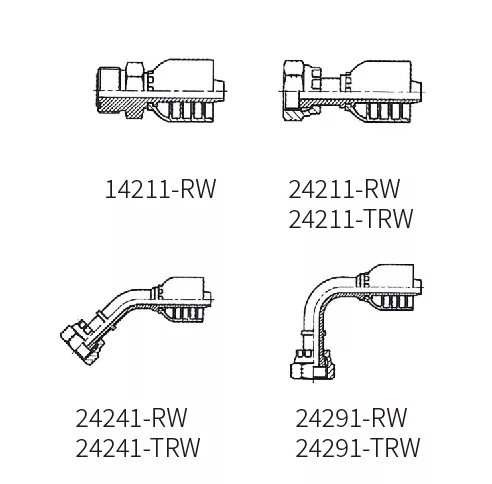

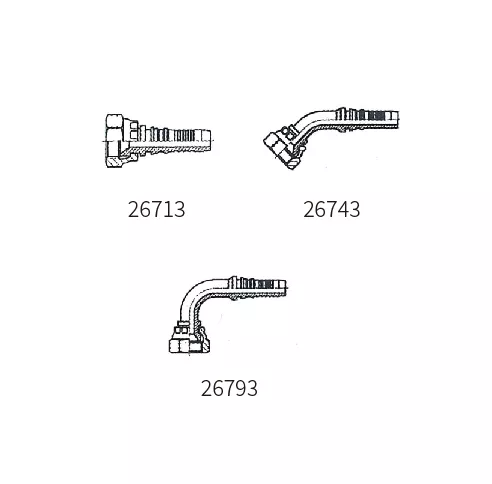

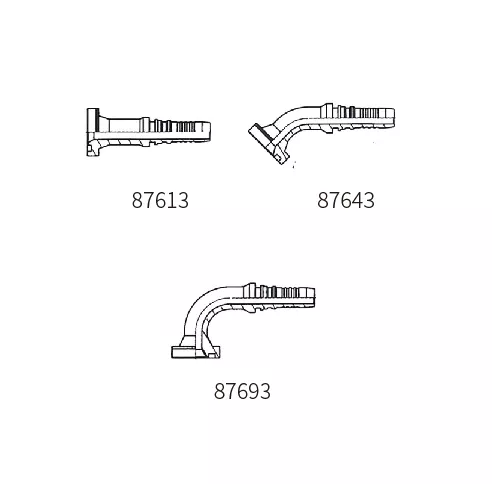

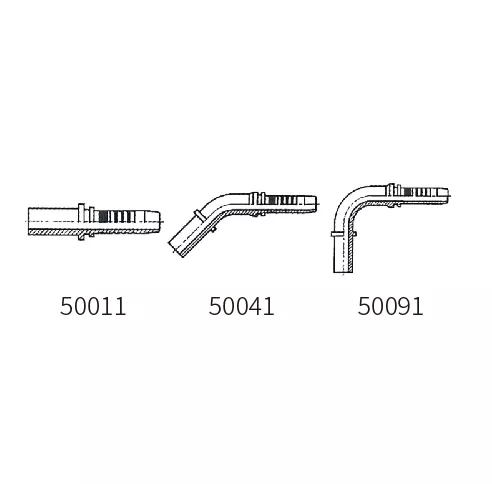

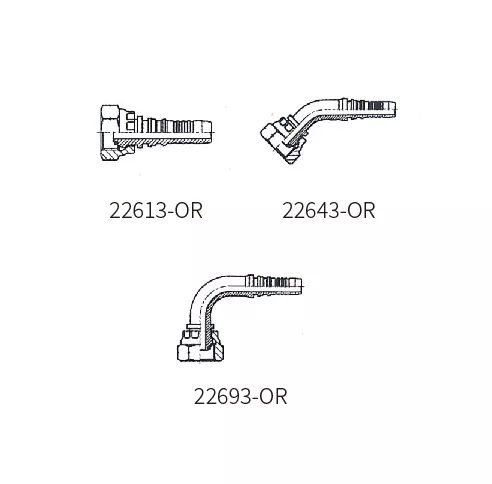

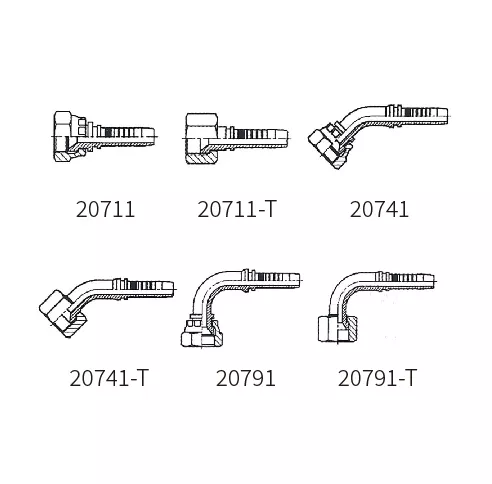

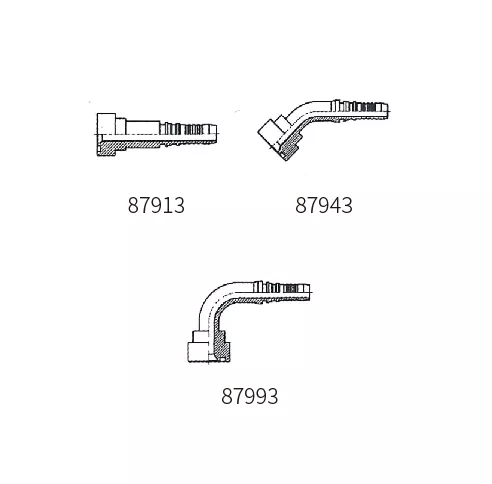

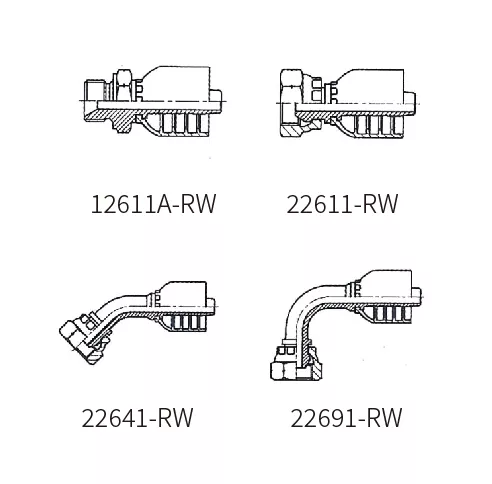

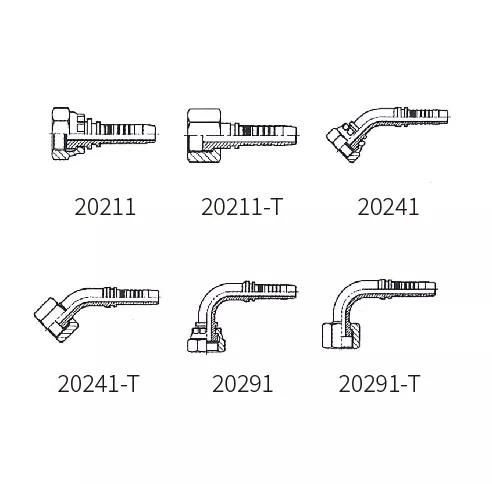

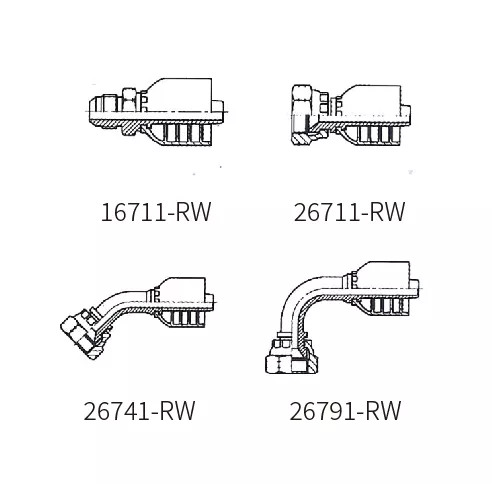

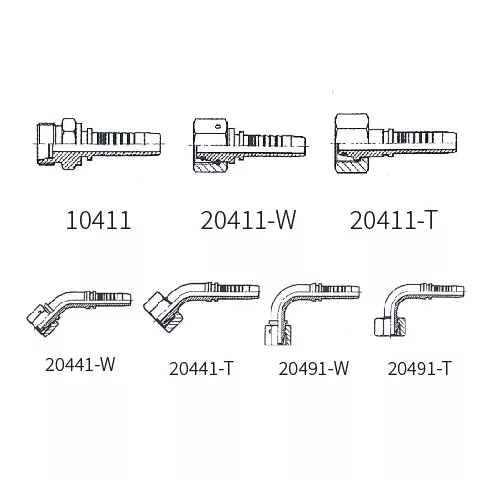

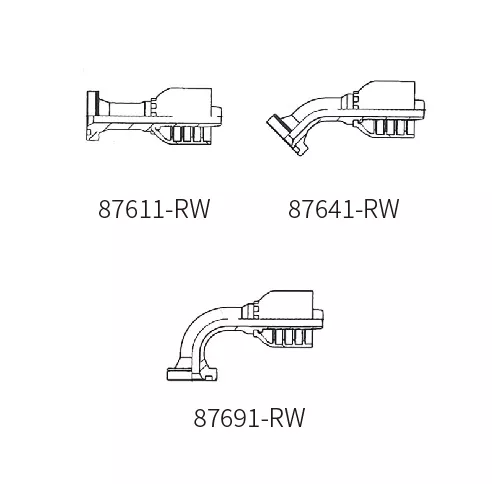

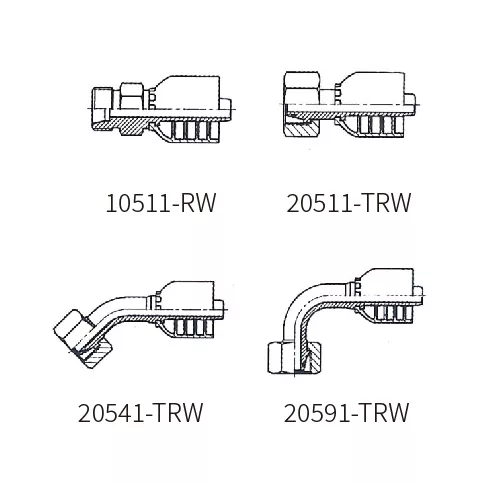

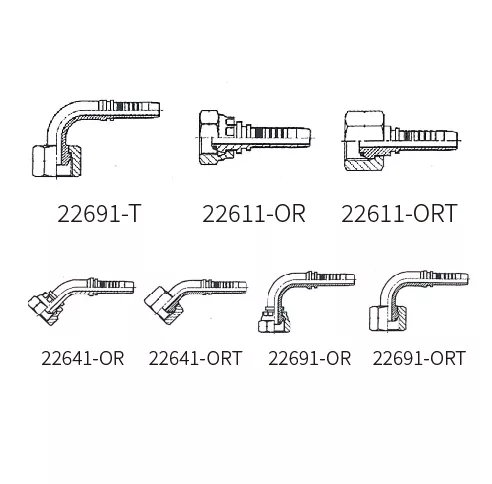

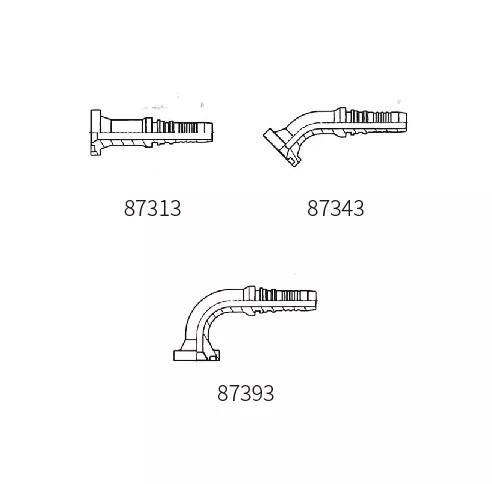

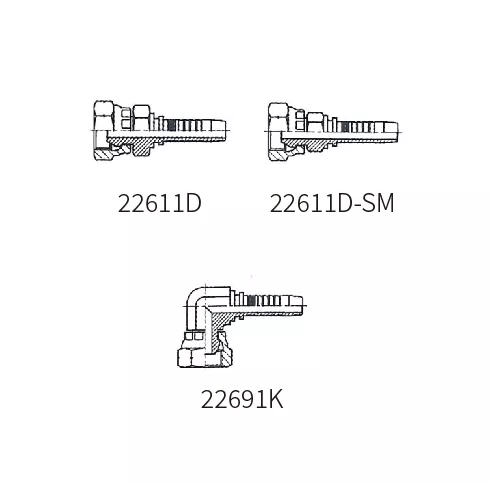

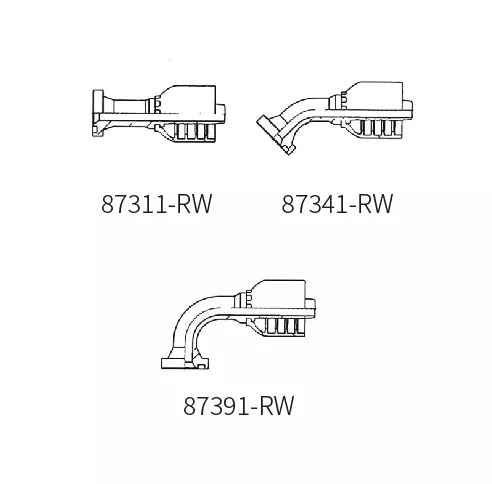

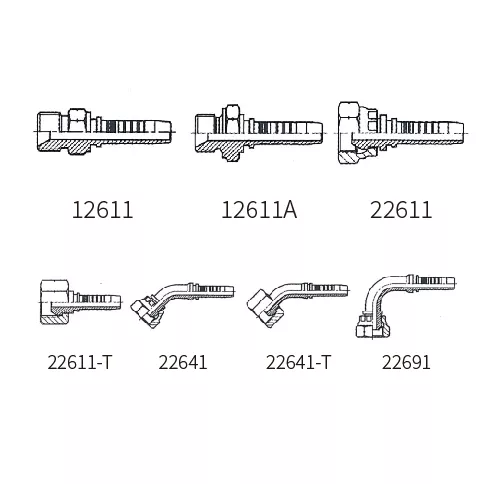

软管接头｜可拆式软管接头
HOSE FITTING｜Reusable Hose Fitting
